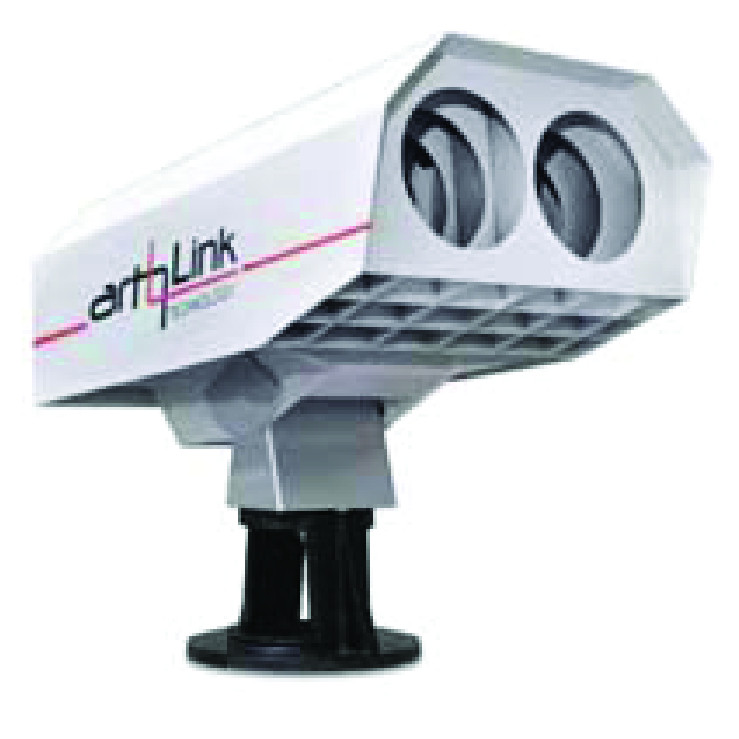

10 Gbit/s ARTOLINK model
Only one wireless communication system on the world market which can transfer data with speed 10 Gbit/s in the full-duplex mode at distances up to 1500m !
•Autotracking
•Narrow beams of emission - secure data
•Wavelength 1550 nm
•Special interface optimized for transmission in the atmosphere
•Autoswitching backup equipment power supply
•Automatic emitting control
•Built-in service channel
•Built-in telescope for easy targeting
•Built-in defroster
•IP monitoring
•SNMP alerts
產品規格：
| Basic interfaces | 1 port 10G SFP+ |
| Bandwidth, Mbit/s Wavelength, nm | 1550 |
| Bandwidth, Mbit/s | 10312,5 Full duplex |
| Fade margin at a distance of 1 km, dB | 22 |
| Latency time of optical channel, ms | < 0,005 |
| Links distances, m for availability 0.997 | 1500 |
| Method of keep link direction | Autotracking system |
| Dynamic range of angle deviation processing (position keeping angle), mrad (grade) | 65 (3,7) |
| Speed of autotracking adjusting, mrad/s | 2 |
| Power supply | АС 100-240, 50-60Hz DC 48 ± 12V |
| Power consumption, W | 46 |
| Category temperature range of the outdoor units, C° | -40 …+50 |
| Dimensions, mm optical unit interface unit | 480х285х300 445х220х45 (19”, 1U) |
| Weight, kg optical unit interface unit interface cable 50m | 9,4 2,15 4,5 |
| Cables length, m | <50 |
| Management, monitoring | UDP (firm software), SNMP traps |
