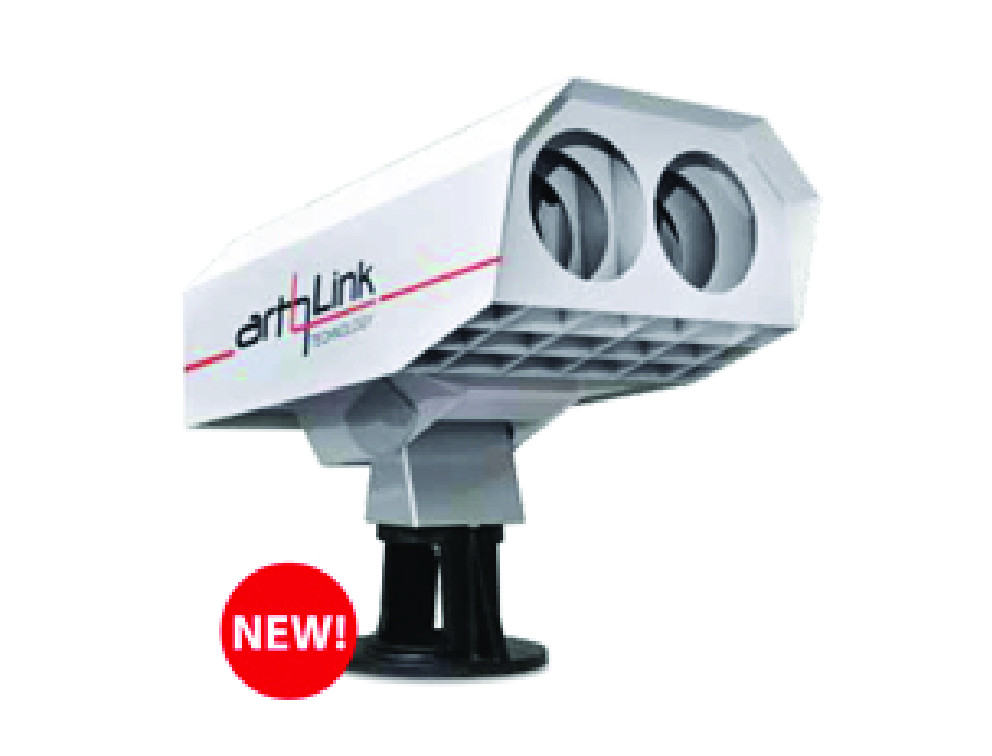

30 Gbit/s ARTOLINK model
Only one wireless communication system on the world market which can transfer data with speed 10, 20,30 Gbit/s in the full-duplex mode at distances up to 1500m !
• Autotracking
• Narrow beams of emission - secure data
• Wavelength 1550 nm
• Special interface optimized for transmission in the atmosphere
• Double channel technology with backup supply
• Automatic emitting control
• Built-in service channel
• Built-in telescope for easy targeting
• Built-in defroster
• IP monitoring
• SNMP alerts
http://artolink.com/page/products/free_space_optics_Artolink_30Gbps/
產品規格
| Basic interfaces | 3 port 10G SFP+ |
| Bandwidth, Mbit/s Wavelength, nm | 1550 |
| Bandwidth, Mbit/s | 10312,5 - 30937,5 Full duplex |
| Fade margin at a distance of 1 km, dB | 18 |
| Latency time of optical channel, ms | < 0,005 |
| Links distances, m for availability 0.997 | 1300 |
| Method of keep link direction | Autotracking system |
| Dynamic range of angle deviation processing (position keeping angle), mrad (grade) | 65 (3,7) |
| Speed of autotracking adjusting, mrad/s | 2 |
| Power supply | АС 100-242, 50-60Hz DC 48 ± 12V |
| Power consumption, W | 49 |
| Category temperature range of the outdoor units, C° | -40 …+50 |
| Dimensions, mm optical unit interface unit | 480х285х300 445х220х45 (19”, 1U) |
| Weight, kg optical unit interface unit interface cable 50m | 9,4 2,15 4,5 |
| Cables length, m | <50 |
| Management, monitoring | UDP (firm software), SNMP traps |
